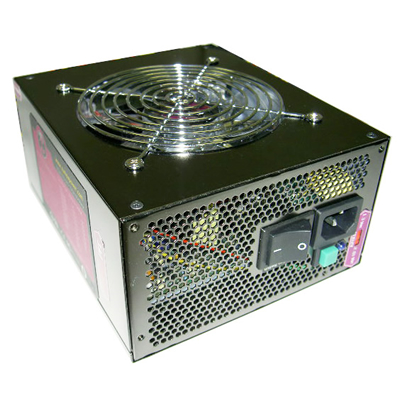

Topower ZU-950W PS2 950W ATX/EPS power supply
|
Model #: PSU-ZU950W
|
Untitled Document
|
Model No.
|
ZU-950W
|
|
AC Input
|
110-240Vac 10/5A 60/50Hz
|
|
Max Output
|
950W
|
|
+3.3V
|
+5V
|
+12V1
|
+12V2
|
+12V3
|
+12V4
|
+12V5
|
+12V6
|
-12V
|
+5VSB
|
|
28A
|
28A
|
20A
|
20A
|
20A
|
20A
|
20A
|
20A
|
0.8A
|
6.5A
|
|
Connectors
|
|
20+4
|
12V-4Pin
|
12V-8Pin
|
SATA
|
FDD
|
|
1
|
1
|
1
|
8
|
2
|
|
Case Fan
|
PCI-E 6 Pin
|
PCI-E 6 Pin
|
PCI-E 6+2 Pin
|
Peripheral
|
|
3
|
2
|
*1
|
2
|
6
|
| OVERCLOCKERS CLUB REVIEW
|
|
Never having heard of Zumax before, I was skeptical about the quality and performance of the 950 X4 series power supply. Fortunately,... More
|
|
-
|
Max DC Output: 950W
|
| -
|
Supports the latest ATX12V v2.2 and EPS12V 2.91 standards and is backwards compatible with ATX12V 2.01 systems
|
| -
|
Auto switching circuitry provides universal AC input 110-240VAC
|
| -
|
Active Power Factor Correction provides clean and reliable power to your system.
|
| -
|
Quiet and Cool 120mm thermally controlled fan
|
| -
|
Turbo Fan Switch providing enhanced cooling to case and PSU fans
|
| -
|
Black Nickel Coating Chassis
|
| -
|
Over Current/Voltage/Power Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety to your critical system components.
|
| -
|
Safety Approvals: UL, CE, FCC, TUV
|
| -
|
Dimensions: 5.9" x 3.4" x 5.5" (W x H x D)
|
| -
|
Shipping Weight: 8lbs
|
| -
|
Package: Retail
|
*Note Extra PCI-E cable for additional video card or PhysX Card
|
|
|
