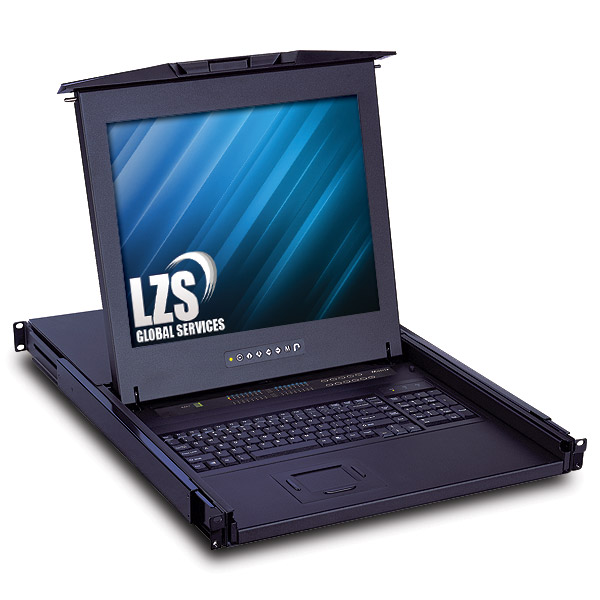

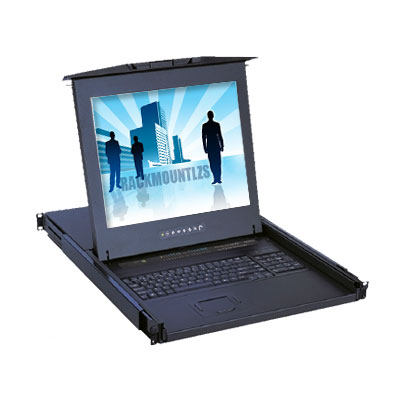

LKA117RP 1U 17" LCD Keyboard / KVM Drawer

FEATURES:

• "One Man“ installation slides for easy, quick installation

• Mix PS/2, USB & SUN with Multi-Platform switch apability

• 1U rackmount drawer with 17" LCD
• Combo interface either PS/2 or USB input to the LCD drawer

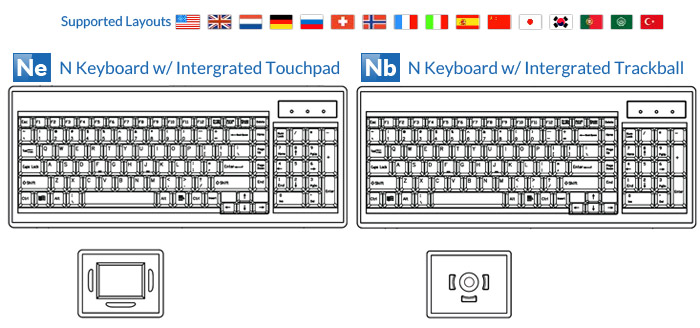

• Multiple keyboard language selections with either touchpad or trackball

• Slide rails with fixed positions to prevent drawer movement when typing

• Enhanced aesthetics with new molded front panel and two point lock

DISPLAY SPECIFICATION:

• Display type: Active Matrix TFT
• Display Area: 17"
• Native resolution: 1280x1024
• Brightness (cd/m²): 300
• Contrast ratio: 1000:1
• Viewing angle (H / V): 160 / 160
• Display colour: 16.7M

• Response time: Tr=1.3 / Tf=3.7

• Pixel Pitch (H x V): 0.264 x 0.264

GENERAL SPECIFICATION:

• Dimension: 17.4" (W) x 25.6" (D) x 1.73" (H)
  **With touchscreen option, the height will be changed from 1U to 1.5U
• Weight: 33 lbs
