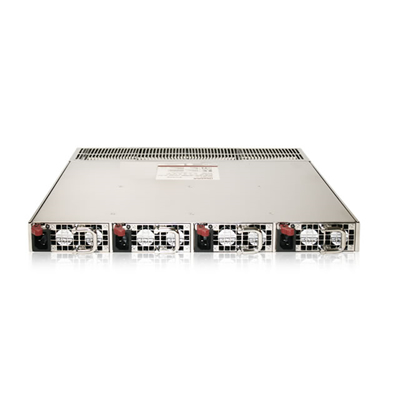

iStar IS2000R4H1UP 2000W 1U Redundant Power Supply

iStar IS2000R4H1UP 2000W 1U Redundant Power Supply
Price: $1,200.00
Model #: PSU-IS2000R4H1UP
Untitled Document
bar
Voltage +3.3V +5V +12V -12V -5V +5Vsb
Max. Load 60.0A 60.0A 158.0A
0.8A 0.5A
3.0A
Min. Load 1.0A 1.0A 2.0A
0.0A 0.0A 0.1A
Regulation  ±5% ±5% ±5%
±5% ±10%   ±5%
Ripple (mV) 50
50 120
120 100 50
bar
*+3.3V and +5V total output not exceed 440W
*+3.3V, +5V and +12V total output not exceed 1975W
* Maximum continuous total DC output power should not exceed 2000 W.

  • 2000W
  • 1U Redundant
  • Dimension: 422 x 43 x 340 mm
