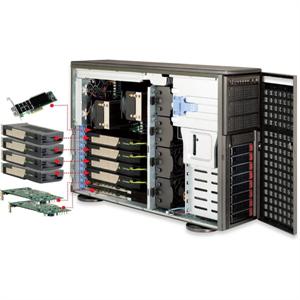

GP433

Price: call for pricing
Model #: LZS433-GP
Untitled Document

  • GPUs are included
  • Up to 4 Double-Width GPUs; 4x NVIDIA Fermi C2070 GPU Cards
  • Dual Quad/Dual-Core Intel® Xeon® processor 5600/5500 series
  • Dual Intel® 5520 chipset with QPI up to 6.4 GT/s each
  • Up to 192GB DDR3 1333/1066/800 MHz ECC Registered DIMM
  • 4 (x16) PCI-E 2.0, 2 (x4) PCI-E 2.0 (in x16 slots), 1 (x4) PCI-E (in x8 slot), 2x PCI 33MHz slots
  • 8x 3.5" Hot-swap Drives Trays Supports up to 6 SATA Drives
  • Dual LAN with Intel® 82574L Gigabit Ethernet controller
  • Redundant 1400W Gold Level (93%) high-efficiency Power Supply



CPU
  • Dual 1366-pin LGA Sockets
  • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
    • Intel® Xeon® Processor X5600/E5600/L5600 Series
      (Westmere) 40W - 130W

    • Intel® Xeon® Processor X5500/E5500/L5500 Series
      (Nehalem-EP) 38W - 95W

Memory Capacity
  • 12x 240-pin DIMM sockets
  • Supports up to 192 GB** 1333 / 1066 / 800MHz DDR3 ECC Registered memory
  • Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
  • Memory Mirroring supported
Memory Type
  • 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
GPU
  • 4x Nvidia Fermi C2070 GPU Cards
Chipset
  • Dual Intel® 5520 (Tylersburg) chipset
  • ICH10R
SATA
  • Intel ICH10R SATA 3.0Gbps Controller
  • RAID 0, 1, 5, 10 support
Network Controllers
  • Intel® Dual 82574L Gigabit Ethernet
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • Intel® I/OAT 3 support for fast, scaleable, and reliable networking
  • VMDq support for better performance of virtualization
Graphics
  • Matrox G200eW
PCI-EXPRESS
  • 4 (x16) PCI-E 2.0 slots
  • 2 (x4) PCI-E 2.0 (in x16 slots)
  • 1 (x4) PCI-E (in x8 slot)
SATA
  • Six Serial ATA ports
  • Six SATA hard drives supported
LAN
  • 2x RJ45 LAN ports
USB
  • 4x USB rear ports
  • 2x USB on-board
  • 1x USB internal header - 2 ports
  • Total 8 USB 2.0 Compliant
VGA
  • 1x VGA Port
VIDEO
  • 1 Fast UART 16550 serial port
  • 1 Fast UART 16550 serial header (Option)
Chassis
Height
  • 7" (178mm)
Width
  • 17.8" (452mm)
Depth
  • 26.5" (673mm)
Gross Weight
  • 72 lbs (32.7kg)
Package
  • 38.6" x 26.6" x 17.4"
Available Color
  • Dark Gray
