GP133A

Price: call for pricing
Model #: LZS133A-GP
Untitled Document

  • Dual Quad/Dual-Core Intel® Xeon® processor 5600/5500 series
  • Intel® 5520 chipset with QPI up to 6.4 GT/s
  • Up to 192GB of Reg. ECC DDR3 DIMM 1333/1066/800 MHz SDRAM

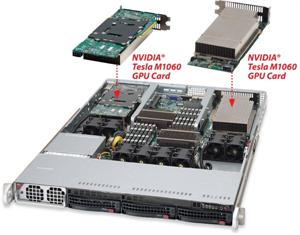

  • FM207: 2x M2070 NVIDIA Fermi GPU Cards + PCI-E 2.0 x4 (in x16 slot - Low-Profile);
  • FM107: 1x M2070 NVIDIA Fermi GPU Card + PCI-E 2.0 x4 (in x16 slot - Low-Profile)
  • + 2x PCI-E 2.0 x8 slots
  • 6x hot-swap 2.5" drive bays
  • Matrox G200eW graphics controller
  • 8x counter-rotating fans with optimal fan speed control
  • IPMI 2.0 with virtual media over LAN and KVM-ove-LAN
  • Dual LAN with Intel 82576 Gigabit Ethernet controller
  • 1400W high-efficiency Gold Level (93%) Power Supply with PMbus





CPU
  • Dual 1366-pin LGA Sockets
  • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
    • Intel® Xeon® Processor X5600/E5600/L5600 Series
      (Westmere) 40W - 130W

    • Intel® Xeon® Processor X5500/E5500/L5500 Series
      (Nehalem-EP) 38W - 95W

Memory Capacity
  • 12x 240-pin DIMM sockets
  • Supports up to 192 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory
  • Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
  • Memory Mirroring supported
Memory Type
  • 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
GPU
  • 2x Nvidia Fermi M2070 GPU Cards
Chipset
  • Intel® 5520 (Tylersburg) chipset
  • ICH10R + IOH-36D
SATA
  • Intel ICH10R SATA 3.0Gbps Controller
  • RAID 0, 1, 5, 10 support
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Winbond® WPCM450 BMC
Network Controllers
  • Intel® 82576 Dual-Port Gigabit Ethernet Controller
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • Intel® I/OAT 3 support for fast, scaleable, and reliable networking
  • VMDq support for better performance of virtualization
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics
  • Matrox G200eW 8 MB DDR2
SATA
  • Six Serial ATA ports
  • Six SATA hard drives supported
LAN
  • 2x RJ45 LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2 rear + 1 header (2 Ports)
  • 4 total USB ports, 2.0 Compliant / 1.1 Compliant
VGA
  • 1x VGA Port
Serial Port / Header
  • 1 Fast UART 16550 serial port
Chassis
Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 28.2" (716mm)
Gross Weight
  • 38 lbs (17.2 kg)
Available Color
  • Black
