5903HPC
|
Model #: LZS-5903HPC
|
Untitled Document

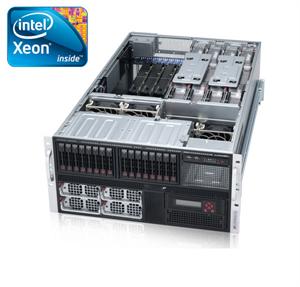

LZS’s 5903HPC provides up to eight Intel Xeon 7500 Series processors, 2TB of DDR3 memory in 64 DIMMs, 10 PCI-E 2.0 expansion slots, Gold / Platinum Level 80Plus power supplies, and up to 24 2.5" hard drives into 5U to deliver exceptional density. In addition users can integrate up to 4 GPUs to take advantage of the exceptionally large memory footprint to address heretofore unmanageable large scale computing projects.
Motherboard
- Up to 8 Intel® Xeon® processor 7500**
series (8-Core) and next gen.
Xeon
processors E7 family (10-Core)
via CPU boards (X8OBN-CPU)
- Dual Intel® 7500 (Boxboro-EX)
chipsets with QPI up to 6.4GT/s
- 1 PLX PCI-E bridge
- Intel® 82576 dual-port GbE Controller
- 6 SATA2 (3 Gbps) ports
- 4 (x16) PCI-E 2.0 + 2 (x8) PCI-E 2.0
or
10x (x8) PCI-E 2.0 slots
-
7. Integrated IPMI 2.0 w/ Dedicated LAN
CPU Board
- Up to 2 Intel® Xeon® processor 7500
series
(8-Core, code named Nehalem
-EX)
and next gen.
Xeon processors
E7 family (10-Core, code named
Westmere-EX)
4 Millbrook per CPU
- 16 DIMM slots support 1066/978/800
MHz DDR3 ECC reg. DIMMs
- 3. 4.8/5.86/6.4GT/s QPI ports
Bridge Board
- Bridge Board
- Note: Supported 7500 series
processors include E7540, X7550,
X7560, L7555, L7545, X7542 only
 |
| CPU |
- Quad 1944-pin Socket G34
- Supports up to four Twelve/Eight-Core ready AMD Opteron™ 6100 Series processors
- HT3.0 Link support
|
| Chipset |
- AMD SR5690/SR5670/SP5100 Chipset
|
 |
| Memory Capacity |
- Thirty-Two DIMM sockets
- Support up to 512GB DDR3 Reg. ECC 1333/1066/800 MHz memory or 128GB of DDR3 Unb. ECC/non-ECC memory
- Quad channel memory bus
- For Dual or Quad CPUs: Recommended that memory be populated equally in adjacent memory banks
|
| Memory Type |
- Registered ECC or unb. ECC / non-ECC DDR3 1333/1066/800 MHz SDRAM 72-bit, 240-pin gold-plated DIMMs
|
 |
| SAS |
- LSI 2008 8 port SAS2 controller
- RAID 0, 1, 10; RAID 5 Optional
- Optional: AOC-SAS2-RAID5-KEY
RAID 5 support
|
| SATA |
- AMD SP5100 (RAID 0, 1, 10)
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM over LAN support
- Winbond® WPCM450 BMC
|
| Network Controllers |
- Intel® 82576 controller, Dual-Port
Gigabit Ethernet
- 10/100/1000BASE-T support
|
| Graphics |
- Matrox G200 16MB DDR2 graphics
|
 |
| SATA |
|
| SAS |
- Integrated LSI 2008 SAS2 Controller
- Eight Serial Attached SCSI (SAS) ports
- Optional RAID 5 support
- 8x 6Gbps SAS / SATA ports
|
| LAN |
- 2 RJ45 LAN ports
- 1 RJ45 Dedicated LAN supports IPMI
|
| USB |
- 7x USB 2.0 ports
- 2x Rear, 4x internal header, and 1x type A
|
| VGA |
|
 |
| PCI-Express |
- 2x PCI-e 2.0 x16
- 2x PCI-e 2.0 x8
- 1x UIO slot
|
 |
| Chassis |
- Form Factor: 1U
- Height 3.5" (89mm)
- Width 17.2" (437mm)
- Depth 27.9" (709mm)
- Gross Weight 69 lbs (31.3kg)
|
|
|
|
