2946SS

Price: call for pricing
Model #: LZS-2946SS
Untitled Document

Key Features

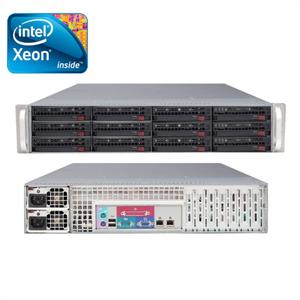

Two Intel Xeon 5500/5600 Based 2U Storage Server with 12 Hot-Swap 3.5” SAS/SATA HDD/Redundant 1200W P/S



  • High Performance SAS2/6GbS Expander
  • High Efficiency PS and Storage Capacity
  • 1200W high-efficiency (1+1) redundant power supply (Gold Level 93%)
  • 6x 3.5" Hot-swappable SAS / SATA Drive Bays
  • 1 x Slim DVD-ROM Drive (optional)
  • Dual 6Gb/s SAS2 Expanders 5. Mini-I-Pass (SFF 8087) connectivity
  • 3x 8cm Hot-swap 4-pin PWM Fans
  • 2x 8cm Rear-exhaust 4-pin PWM Fans
  • Palletized package for secure transportation
  • Optional 3x slim 2.5" Internal Fixed HDD



Specifications



part number LZS-2946SS
Processor/Cache
CPU
  • Dual 1366-pin LGA Sockets
  • Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
    • Intel®
      Xeon®Processor 5600 Series (Westmere)
    • Intel®
      Xeon®Processor 5500 Series (Nehalem-EP)
System Memory
Memory Capacity
  • 12x 240-pin DIMM sockets
  • Supports up to 192 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory
  • Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
  • Memory Mirroring supported
Memory Type
  • 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
Onboard Devices
Chipset
  • Intel® 5520 (Tylersburg) chipset
  • ICH10R + 2x IOH-36D
SAS
  • LSI 6Gbps SAS 2008
  • RAID 0, 1, 10 support
  • (Optional: AOC-SAS2-RAID5-KEY) RAID 5 support
SATA
  • Intel ICH10R SATA 3.0Gbps Controller
  • RAID 0, 1, 5, 10 support (Windows)
  • RAID 0, 1, 10 support (Linux)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Winbond® WPCM450 BMC
Network Controllers
  • Intel® 82576 Dual-Port Gigabit Ethernet Controller
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • Intel® I/OAT 3 support for fast, scaleable, and reliable networking
  • VMDq support for better performance of virtualization
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
Graphics
  • Matrox G200eW
Input / Output
SATA / SAS
  • 8 SASII / SATA ports
LAN
  • 2x RJ45 LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB rear ports
  • 2x USB on-board
  • 4x USB internal headers
  • Total 8 USB 2.0 Compliant
VGA
  • 1x VGA Port
Serial Port / Header
  • 1 Fast UART 16550 serial port
  • 1 Fast UART 16550 serial header (Option)
Chassis
Chassis
  • Height 3.5" (89mm)
  • Width 17.2" (437mm)
  • Depth 27.75" (705mm)
  • Gross Weight 55 lbs (24.9kg)
