2936SS
|
Model #: LZS-2936SS
|
Untitled Document

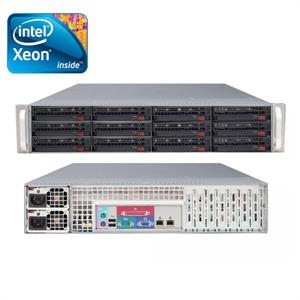

Two Intel Xeon 5500/5600 Based 2U Storage Server with 12 Hot-Swap 3.5” SAS/SATA HDD/Redundant 1200W P/S
- High Performance SAS2/6GbS Expander
- Dual Expander Chip
- Intel® Xeon® processor 5600/5500
series, with QPI up to 6.4 GT/s
- Intel® 5520 (Tylersburg) Chipset
- Up to 288GB DDR3 1333/ 1066/ 800MHz
ECC Registered DIMM / 48GB
Unbuffered DIMM
- Intel® 82576 Dual-port Gigabit
Ethernet Controller
- 6x SATA2 (3 Gbps) Ports via
ICH10R Controller
- 2 (x8) PCI-E 2.0 (in x16 slots)
2 (x4) PCI-E 2.0 (in x 8 slots)
1 (x4) PCI-E (in x 8 slot)
1 UIO (PCI-E 2.0 x8 slot)
- Integrated Matrox G200eW Graphics
- 8Integrated IPMI 2.0 with KVM and
Dedicated LAN
- 800W Redundant Power Supply
- 12 x 3.5" Hot-swap SAS / SATA Drive
Bays
- 3 x 80mm 6300 RPM Fan
- 7 x Low-profile, Full-length I/O
Expansion Slot

 |
CPU |
- Dual 1366-pin LGA Sockets
- Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
- Intel®
Xeon®Processor 5600 Series (Westmere)
- Intel®
Xeon®Processor 5500 Series (Nehalem-EP)
|
 |
Memory Capacity |
- 18x 240-pin DIMM sockets
- Supports up to 192 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory
- Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
- Memory Mirroring supported
|
Memory Type |
- 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
|
|
Chipset |
- Intel® 5520 (Tylersburg) chipset
- ICH10R + IOH-36D
|
SAS |
- LSI 6Gbps SAS 2108 w/ Hardware RAID support
- RAID 0, 1, 5, 6, 10, 50, 60 support
- BBU (battery backup) extension kit (optional)
|
SATA |
- Intel ICH10R SATA 3.0Gbps Controller
- RAID 0, 1, 5, 10 support (Windows)
- RAID 0, 1, 10 support (Linux)
|
IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- Winbond® WPCM450 BMC
|
Network Controllers |
- Intel® 82599EB 10 Gigabit Ethernet Controller with 2 SFP+ interfaces
- Intel® 82576 Dual-Port Gigabit Ethernet Controller
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
- Intel® I/OAT 3 support for fast, scaleable, and reliable networking
- VMDq support for better performance of virtualization
- 1x Realtek RTL8201N PHY (dedicated IPMI)
|
Graphics |
|
 |
SATA |
- Six Serial ATA ports
- Six SATA hard drives supported
|
LAN |
- 2x RJ45 LAN ports
- 1x RJ45 Dedicated IPMI LAN port
|
USB |
- 4x USB rear ports
- 1x TypeA USB connector
- 3x USB internal headers( 5 ports)
- 10 total USB ports, 2.0 Compliant
|
VGA |
|
Serial Port / Header |
- 1 Fast UART 16550 serial port
- 1 Fast UART 16550 serial header (Option)
|
 |
Chassis |
- Height 3.5" (89mm)
- Width 17.2" (437mm)
- Depth 27.75" (705mm)
- Gross Weight 55 lbs (24.9kg)
|
|
|
|
