2926SS
|
Model #: LZS-2926SS
|
Untitled Document
Key Features

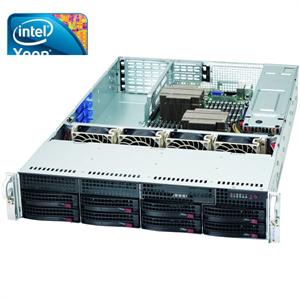

Two Intel Xeon 5600 Based 2U Storage Server with 8 Hot-Swap HDD/Intel® 82599EB 10 Gigabit + 82576 Dual-Port Gigabit Ethernet Controller
- Intel® Xeon® processor 5600/5500
series, with QPI up to 6.4 GT/s
- Up to 192GB DDR3 1333/ 1066/
800MHz ECC Registered DIMM /
48GB Unbuffered DIMM
- Left Slot (Full-height / Full-length):
2 (x8) PCI-E 2.0 slots
- Right Slot (Low-Profile - 5.5" depth):
1 (x4) PCI-E 2.0 (in x8 slot)
- LSI 2108 8-Port 6Gbps SAS Controller;
RAID 0, 1, 5, 6, 10, 50, 60
- Intel® 82599EB 10 Gigabit +
82576 Dual-Port Gigabit
Ethernet Controller
- 8x 3.5" Hot-swap SAS/SATA Drives,
For Customizable Storage
- 920W High-efficiency Platinum Level
Redundant Power Supply
- Integrated IPMI 2.0 with
Dedicated LAN
Specifications
| part number LZS-2926SS |
| Processor/Cache |
| CPU |
- Dual 1366-pin LGA Sockets
- Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
- Intel® Xeon® Processor X5600/E5600/L5600 Series
(Westmere) 40W - 130W
- Intel® Xeon® Processor X5500/E5500/L5500 Series
(Nehalem-EP) 38W - 95W
|
| System Memory |
| Memory Capacity |
- 18x 240-pin DIMM sockets
- Supports up to 192 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory
- Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
- Memory Mirroring supported
|
| Memory Type |
- 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
|
| Onboard Devices |
| Chipset |
- Intel® 5520 (Tylersburg) chipset
- ICH10R
|
| SAS |
- LSI 6Gbps SAS 2108 w/ Hardware RAID support
- RAID 0, 1, 5, 6, 10, 50, 60 support
- BBU (battery backup) extension kit (optional)
|
| SATA |
- Intel ICH10R SATA 3.0Gbps Controller
- RAID 0, 1, 5, 10 support
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- Winbond® WPCM450 BMC
|
| Network Controllers |
- Intel® 82599EB 10 Gigabit Ethernet Controller with 2 SFP+ interfaces
- Intel® 82576 Dual-Port Gigabit Ethernet Controller
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
- Intel® I/OAT 3 support for fast, scaleable, and reliable networking
- VMDq support for better performance of virtualization
- 1x Realtek RTL8201N PHY (dedicated IPMI)
|
| Graphics |
|
| Input / Output |
| SAS |
- 8x 6Gbps SAS / SATA ports with 2 I-PASS connectors
|
| SATA |
- Six Serial ATA ports
- Six SATA hard drives supported
|
| LAN |
- 2x RJ45 LAN ports
- 2x SFP+ LAN port
- 1x RJ45 Dedicated IPMI LAN port
|
| USB |
- 2x USB rear ports
- 2x USB on-board
- 4x USB internal headers
- Total 8 USB 2.0 Compliant
|
| VGA |
|
| Serial Port / Header |
- 1 Fast UART 16550 serial port
- 1 Fast UART 16550 serial header (Option)
|
| Chassis |
| Chassis |
- Height 3.5" (89mm)
- Width 17.2" (437mm)
- Depth 27.75" (705mm)
- Gross Weight 55 lbs (24.9kg)
|
|
|
|
