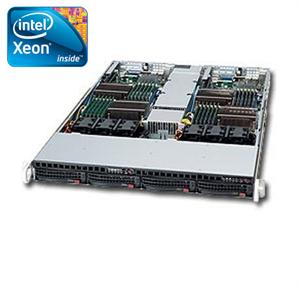

1905HDS
|
Model #: LZS-1905HDS
|
Untitled Document
- Two systems (nodes) in a 1U form factor. Each node supports the following:
- Intel® Xeon® processor 5600/5500
series, with QPI up to 6.4 GT/s
- 2. Up to 192GB** DDR3 1333/ 1066/
800MHz ECC Registered DIMM / 48GB
Unbuffered DIMM
- 1 (x16) PCI-E ( Low Profile) Integrated IPMI 2.0 with KVM and
Dedicated LAN
- Intel® 82576 Dual-Port Gigabit
Ethernet Controller
- 2x Hot-swap SATA Drive Bays
- 1200W Gold-level High-efficiency
Power Supply
- Two nodes in one 1U system - save chassis, power supply, and rack costs
- Double the density and computing power - save IT space rental costs
- Higher power utilization increases power supply efficiency - save energy costs
- Reduce power cables and power strips for easy cabling,
better airflow and reduced cabling costs
- Operate and maintain two systems in one physical space
save maintenance / management costs
- Perfect for HPC computing cluster, data center / data farm,
search engine nodes
and high-availability applications
 |
| CPU |
- Dual 1366-pin LGA Sockets
- Supports up to two Intel® 64-bit Xeon® processor(s) of the same type below:
- Intel® Xeon® Processor X5600/E5600/L5600 Series
(Westmere) 40W - 130W
- Intel® Xeon® Processor X5500/E5500/L5500 Series
(Nehalem-EP) 38W - 95W
|
 |
| Memory Capacity |
- 12x 240-pin DIMM sockets
- Supports up to 192 GB** 1333 / 1066 / 800MHz DDR3 ECC Registered memory
- Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
- Memory Mirroring supported
|
| Memory Type |
- 1333 / 1066 / 800MHz ECC Registered / ECC or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
|
 |
| Infiniband |
- Mellanox ConnectX-2 QDR Infiniband 40Gbps Controller
|
| Chipset |
- Intel® 5500 (Tylersburg) chipset
- ICH10R + IOH-24D
|
| SAS |
|
| SATA |
- Intel ICH10R SATA 3.0Gbps Controller
- RAID 0, 1 support
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- Winbond® WPCM450 BMC
|
| Network Controllers |
- Intel® 82576 Dual-Port Gigabit Ethernet Controller
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
- Intel® I/OAT 3 support for fast, scaleable, and reliable networking
- VMDq support for better performance of virtualization
- 1x Realtek RTL8201N PHY (dedicated IPMI)
|
| Graphics |
|
 |
| LAN |
- 2x RJ45 LAN ports
- 1x RJ45 Dedicated IPMI LAN port
|
| USB |
- 2 rear + 1 header (2 Ports)
- 4 total USB ports, 2.0 Compliant / 1.1 Compliant
|
| VGA |
|
| Serial Port / Header |
- 1 Fast UART 16550 serial port
|
 |
| Chassis |
- Height 1.7" (43mm)
- Width 17.2" (437mm)
- Depth 27.75" (705mm)
- Gross Weight 40 lbs (18.1kg)
|
|
|
|
